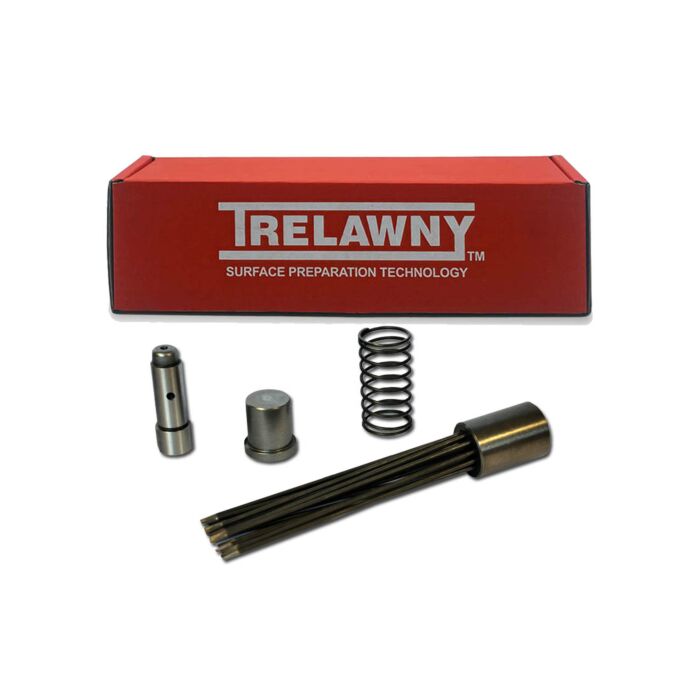

Needle Scaler Service Kit for VL203 & VL 223 Needle Scalers

SKU
446.2003

Availability: In stock

£108.73 £90.61
Add to Compare
Quick Overview

This kit contains a selection of common replacement parts for the VL203 & VL 223 Needle Scalers. As well as the internal replacement parts, it also contains a complete set of needles and needle holder.

Components:

  • 618.3022 Valve Stem x 1
  • 636.3003 Valve Pin x 1
  • 704.3101 Vibro-Lo Chisel 1/2"Sq x 3/4" x 1
  • 712.2003 Front Spring VL203/223 x 1
  • 712.3022 Spring Valve Universal x 1
  • 716.3000 Throttle Lever Universal x 1
  • 809.0080 O'Ring 4.47x1.78 VR 3BPG x 1
  • 809.0089 O'Ring square section v/seat x 1
  • 809.0139 O'Ring 10.8x1.78 Valve Cap x 1
  • 809.0299 O'Ring 37.8x1.78 3BPG/3BLR x 1
  • 809.2004 Piston Cushion VL203/223 50mm x 1
  • 813.0108 Spring Pin 1/8" x 1" Long x 1
  • 816.3003 Ball dia 1/4" Rubber x 2
  • 829.2002 Piston Ring VL203 x 1
  • 829.2003 Guide Plate Seal x 1
  • Specifications
SKU 446.2003
Weight (kg) 1.5400
For Product VL203 & VL223 Needle Scalers
Kit Contains Valve Cap 'O' Ring, Valve Seat 'O' Ring, Guide Plate Seal, Guide Plate 'O' Ring, 6mm Diameter Ball (Polyurethane), Piston Cushion, Valve Pin, Piston Ring, Front Spring, 3mm Needle Holder, 1 Set of 19 Needles
